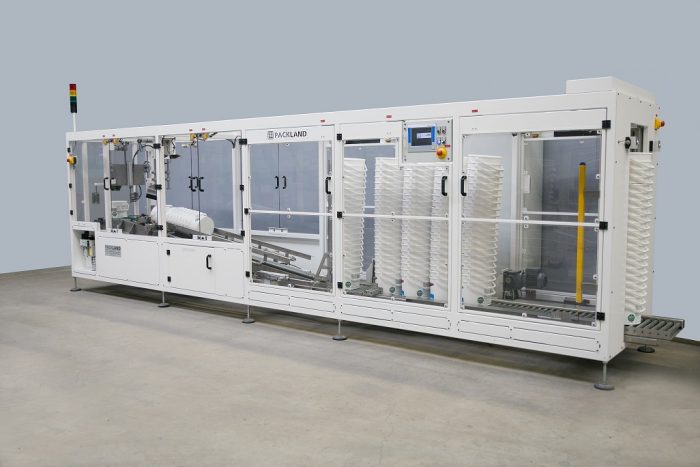

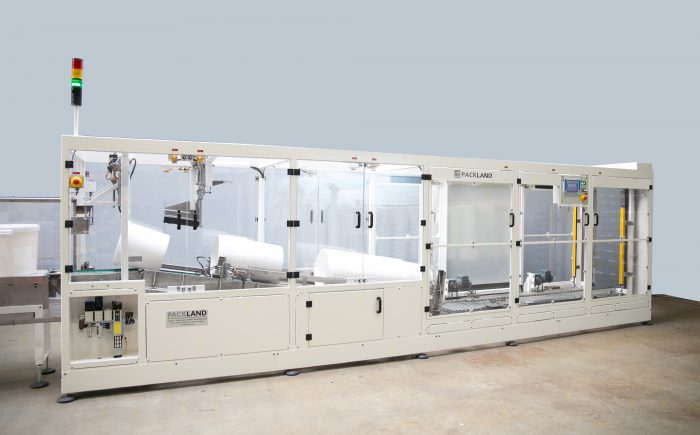

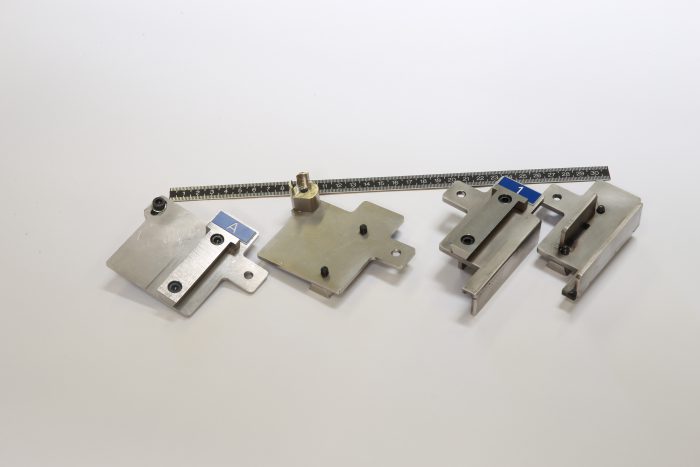

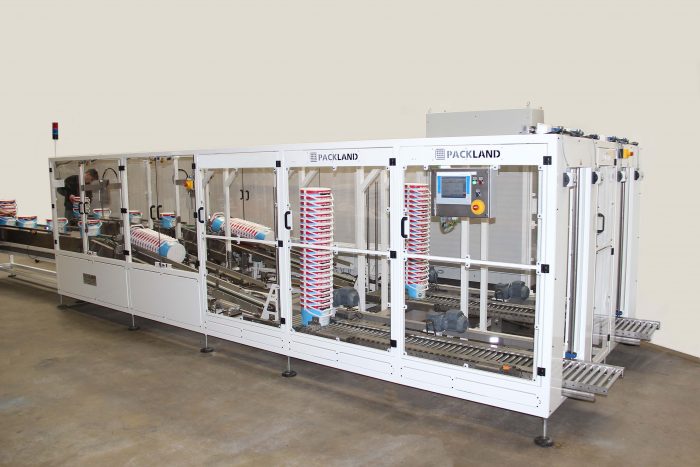

The Packland bucket denester automatically destacks buckets/pails at speeds up to 35 buckets per minute. The sizes vary from 2.5 to 30 liters, both round, oval, hexagonal, rectangular, and square. After choosing the program, the machine automatically changes over to the desired format. The machine is also available as a twin track at speeds up to 70 buckets/pails per minute.

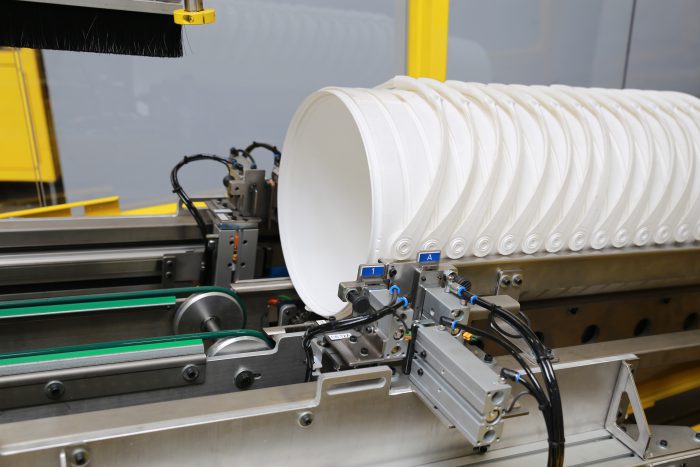

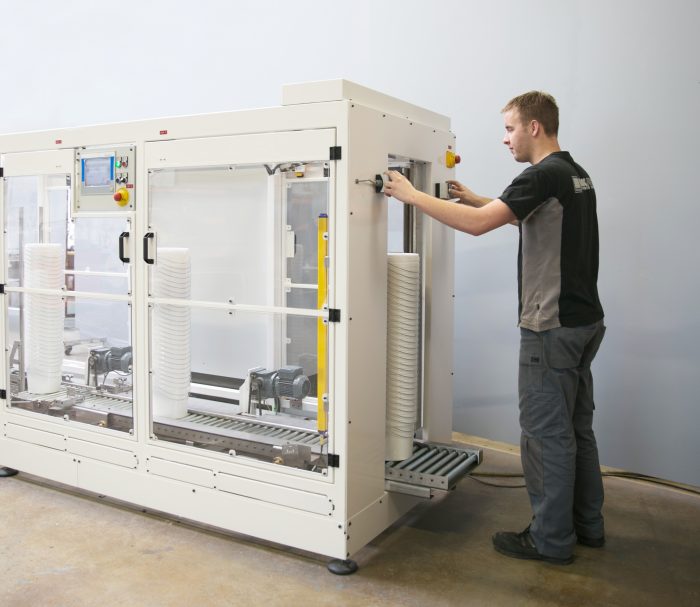

A stack of buckets/pails is manually placed on the infeed conveyor with the handles turned outward. After pressing the two hand controls, the stack is fed in on the buffer infeed conveyor of the machine. A tilting mechanism tilts the stack on the separating track, after which the stack is slid by means of a servo drive to the separating station. Here, each time the upper bucket pulled from the stack. After separating the bucket is put upright and fed out of the machine.
|Machine speed||Maximum 44 buckets per minute, depending on bucket size|
|Bucket material||Metal, plastic|

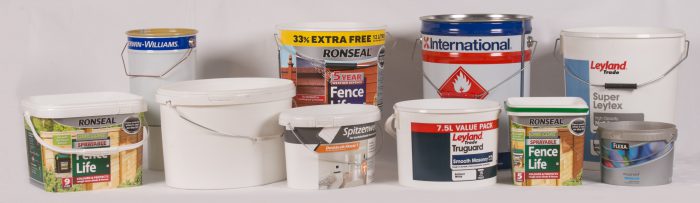

|Bucket size||Round, oval, hexagonal, square and rectangular. Equipped with handle or strap.
Minimum content: 2.5L.
Maximum content: 30L.
Other sizes available on request.
|Machine dimensions||approx 6000 x 1600 x 1800 mm (L x W x H) without options|
|Compressed air||6 bar, clean dry air|
|Air consumption||approx 400L/m|
|Supply voltage||400V – 3 fase / N / earth 50Hz, others on request|
