Packland Clip nozzle mounter CN/CE

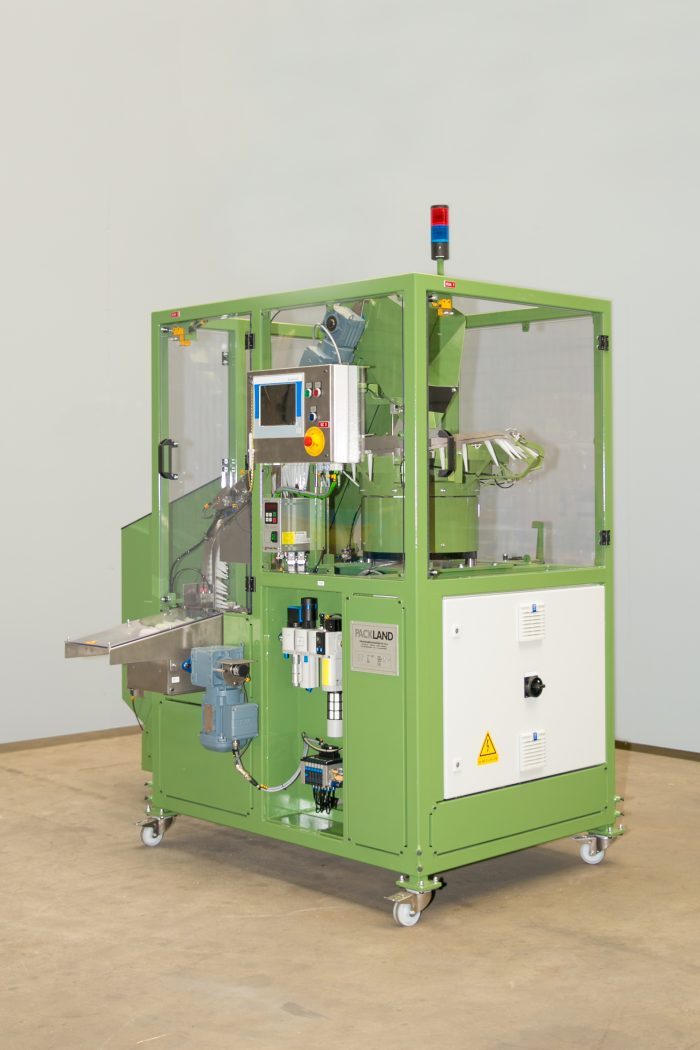

The fully automatic Packland clip nozzle mounting machine CN / CE mounts clipnozzles on cartridges.

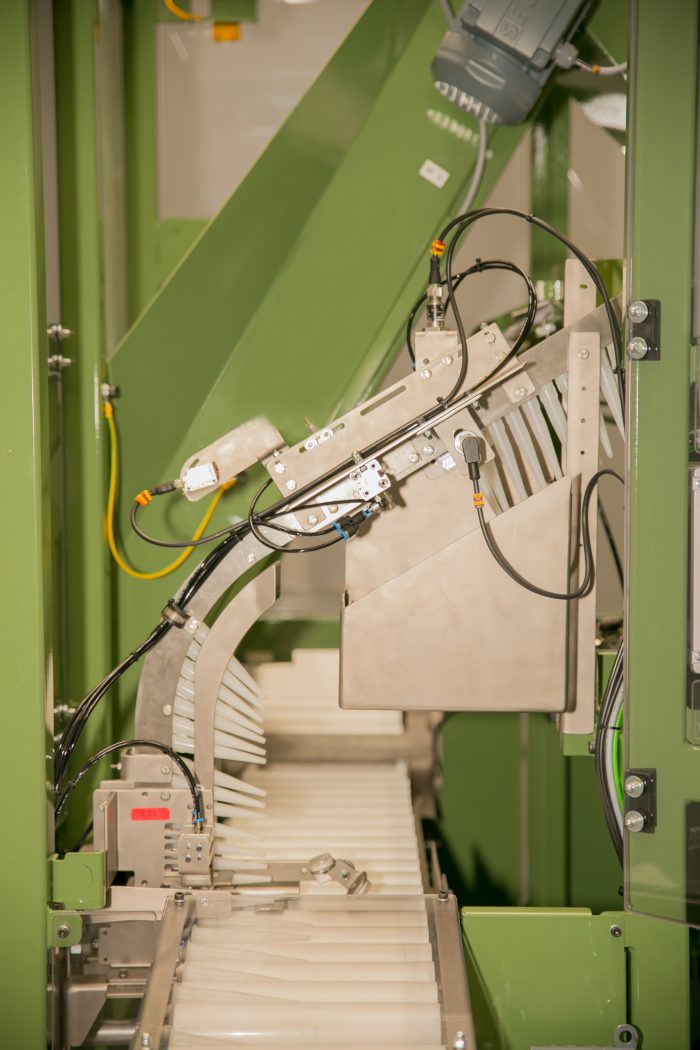

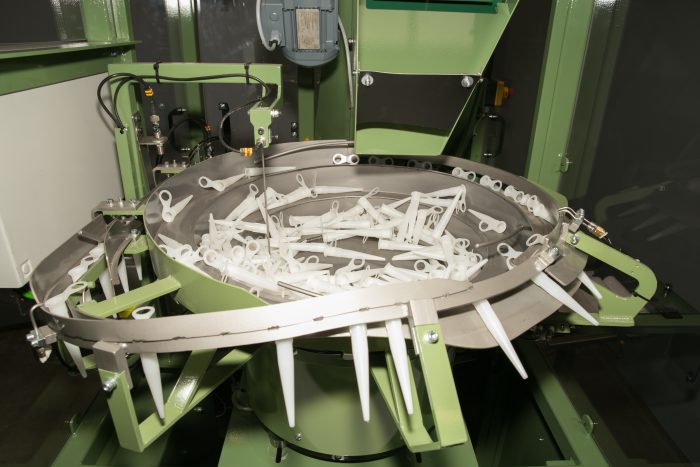

The cartridges roll into the machine onto a chain conveyor. The clip nozzle is transported in a rail from the orientator bowl to the mounting station. Here the clip nozzle is pushed onto the cartridge. The machine checks whether or not the clip nozzle is mounted correctly before the cartridge is transported out.

  • Height adjustable infeed for optimal connection to the filling machine
  • Compact and ergonomically accessible
  • Solid welded steel frame finished with a PU coating
  • Complete manual and built in accordance with CE requirements
  • The machine is PLC controlled and equipped with a touch screen for operation and for displaying errror messages
  • The touch screen features a USB connection for the download and upload of data
  • Also, the PLC has a connection for a TCP / IP connection. If required, we can send updates via this link

Technical specifications:

Machine speed upto approx 60 cartridges per minute
Type of cartridge Standard 310mL cartridges, plastic, aluminium or cardboard
Clip types short/long (with or without cap)
Machine dimensions approx 1500 x 1780 x 1910 mm (L x W x H) without options
Compressed air 6 bar, clean dry air
Air consumption approx 100L/m
Supply voltage 400V – 3 phase / N / earth 50Hz, others on request


  • Automatic filling of the orientator bowl by buffercontainer with up feed conveyor
  • other requirements in consultation
