Packland sausage packer

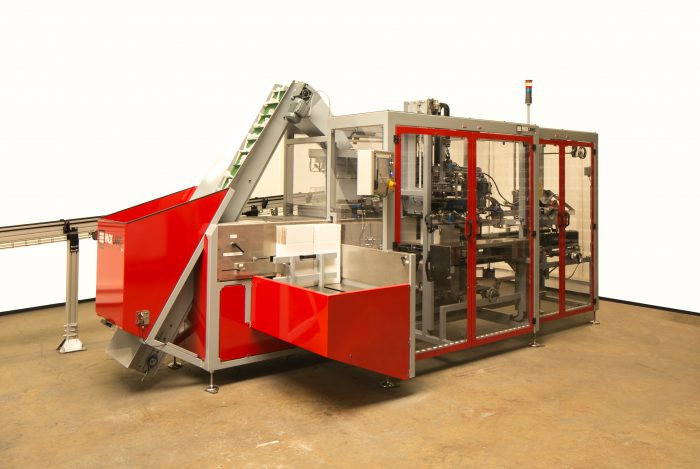

The fully automatic Packland sausage packer/ CE packs sausages in American folding boxes, and also adds nozzles to the box.

The containers are transported over an ascending conveyor. When the sausages are at the pick up position, the nozzle are placed on top and the whole package is picked up by vacuum and placed in the box. After this the box is closed with 50 mm wide self-adhesive tape.

  • The product input and box output conveyors are driven by electric motors
  • The cardboard blank and the vertical product placer are servo driven for maximum precision and speed

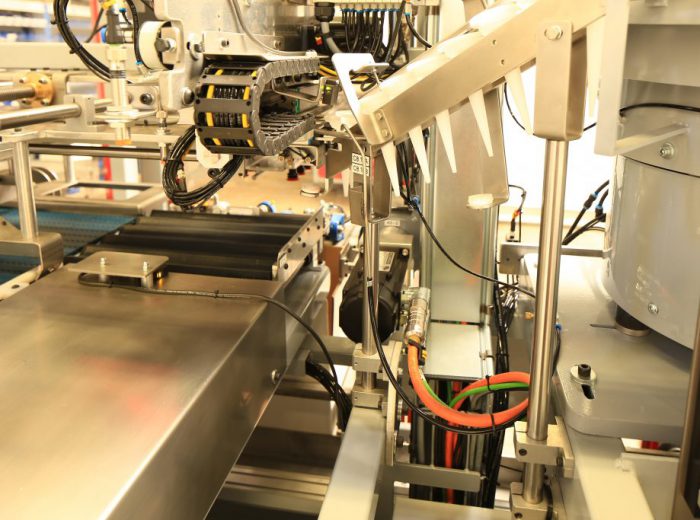

  • The nozzles are orientated in the orientating bowl and tranported to the dispenser via a rail.
  • The machine is PLC controlled and equipped with a touch screen for operation and for displaying error messages
  • The touch screen features a USB connection for the download and upload of data
  • Also, the PLC has a connection for a TCP / IP connection. If required, we can send updates via this link
  • Changeover into another format is carried out with 5 hand wheel with numeric counters and 3 change parts. The changeover time is approximately 5 minutes

Technical specifications:

Machine speed Upto 60 sausages per minute, depending on configuration

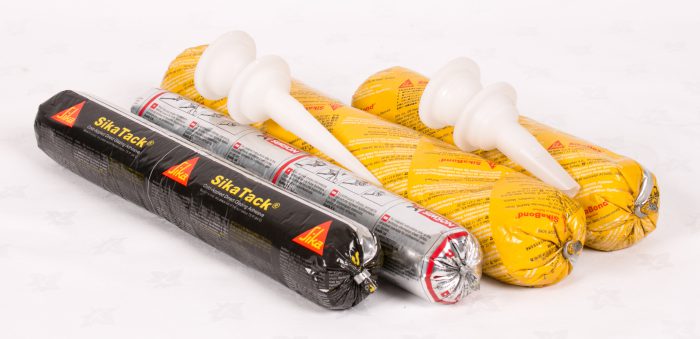

Sausage types 310, 400 and 600mL
Sausage sizes 310mL: 49mm x 195mm (incl tips)
400mL: 49mm x 248mm (incl tips)
600mL: 49mm x 355mm (incl tips)
Other sizes available on request.
Box types American folding boxes
Box sizes 5×4 310ml , 90 graden gedraaid
3×5 400mL
5×4 600mL
Other sizes available on request.
Machine dimensions approx 4350 x 1900 x 2340 mm (L x W x H) without options
Compressed air 6 bar, clean dry air
Air consumption approx 400L/m
Supply voltage 400V – 3 phase / N / earth 50Hz, others on request

Options:

  • left-right or right-left version
  • tape dispenser for adhesive tape with a width of 75 mm
  • detection of tape length, tape cut and nearly out of tape
  • change part rack
  • other wishes/requirements in consultation
